Howdy,

I was wondering what your temps were under load?

Hello:

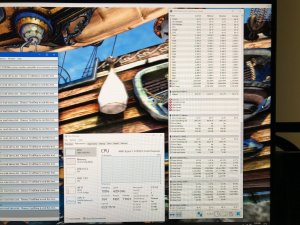

I ran the Heaven benchmark and Prime95 (these were originally used to test this case and can serve as a baseline reference) simultaneously for a half hour at 2560 x 1440 resolution.

CPU: Maximum: 76 C . . . Average: 59 C
GPU: Maximum: 59 C . . . Average: 50 C

Ambient temperature: 21.7 C



DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
I swapped my Z390 Phantom ITX board to my sons pc and got myself the Z390 Strix board.

Well, it turns out that the C14 cooler hits the backplane/heatsink on the Strix and is not usable. I tried all orientations, no luck.

Most 240 AIOs (x53 specifically) are on backorder so I installed a Noctua UH12A and I'm letting it hang out the side while I figure out what to do...


DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
I installed the Noctua NH U9S.

I had to remove one of the side intake fans but I think a single NF A12 should be fine.

I cut out a square from an anti static bag and put it under the filter where the other 120mm fan was to help the air better pass through the cpu area with hopefully less leakage.

A brief 15 minute test in Apex Legends had the cores topping out at 57 to 61C (stock 8700k speeds and voltages)

If I can get it to run cool at 4.8 or so I might keep it, but I can always throw it in a kids pc if I get an x53 later...



Attachments

  • 20200530_131109.jpg
    505.4 KB · Views: 0
  • 20200530_131148.jpg
    1,007.6 KB · Views: 0
  • 20200530_132448.jpg
    657.6 KB · Views: 0
  • 20200530_130255.jpg
    453.3 KB · Views: 0
  • 20200530_130252.jpg
    415.9 KB · Views: 0
  • 20200530_130246.jpg
    468 KB · Views: 0

Bawjaws

Limp Gawd
Joined
Feb 20, 2017
Messages
453
I installed the Noctua NH U9S.

I had to remove one of the side intake fans but I think a single NF A12 should be fine.

I cut out a square from an anti static bag and put it under the filter where the other 120mm fan was to help the air better pass through the cpu area with hopefully less leakage.

A brief 15 minute test in Apex Legends had the cores topping out at 57 to 61C (stock 8700k speeds and voltages)

If I can get it to run cool at 4.8 or so I might keep it, but I can always throw it in a kids pc if I get an x53 later...
Nice. I have a very similar setup although I attached the rear 92mm fan to the case rather than the heatsink as that seemed to make a marginal improvement - my logic was that I'd rather draw hot air out of the case directly than have the CPU fans pushing it towards the back of the case, but the difference was only a couple of degrees C.


DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
Nice. I have a very similar setup although I attached the rear 92mm fan to the case rather than the heatsink as that seemed to make a marginal improvement - my logic was that I'd rather draw hot air out of the case directly than have the CPU fans pushing it towards the back of the case, but the difference was only a couple of degrees C.

Interesting idea, after extensive play testing, I have cores hitting 67C which seems high for stock settings.

Ultimately, I think I will probably go to an X52...


Bawjaws

Limp Gawd
Joined
Feb 20, 2017
Messages
453
Interesting idea, after extensive play testing, I have cores hitting 67C which seems high for stock settings.

Ultimately, I think I will probably go to an X52...
67°C seems okay to me. Sure, you could definitely get it lower with other cooling solutions but it's not like these chips will suffer from being run in the mid-sixties.


DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
67°C seems okay to me. Sure, you could definitely get it lower with other cooling solutions but it's not like these chips will suffer from being run in the mid-sixties.

It's certainly workable and not bad for a $59 cooler in the right system, but a better cooler will let you run slower fans and give you some OC headroom.

I was considering pushing it up to maybe 4.8 or so but I don't think this cooler is really suitable for anything much beyond stock speeds.

That said, I have not done a delid yet (I have the tool) and it worked wonders on my 7700K so I do have some options....


rfarmer

[H]ard|Gawd
Joined
May 9, 2014
Messages
1,165
It's certainly workable and not bad for a $59 cooler in the right system, but a better cooler will let you run slower fans and give you some OC headroom.

I was considering pushing it up to maybe 4.8 or so but I don't think this cooler is really suitable for anything much beyond stock speeds.

That said, I have not done a delid yet (I have the tool) and it worked wonders on my 7700K so I do have some options....
I delidded my 8700k and it makes a huge difference, makes cooling it much easier in SFF cases. I dropped a full 20C.


DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
I delidded my 8700k and it makes a huge difference, makes cooling it much easier in SFF cases. I dropped a full 20C.

Yeah, it was 20C+ on my 7700k and it helped hit the 4000mhz XMP that it couldn't hit before the delid.


TaHoward

n00b
Joined
Oct 6, 2010
Messages
25
Really wanted to try out a D5 pump with Ncase M1 without sacrificing side mount 240mm radiator so came up with this a few years back. Some pictures of the fabricated part and getting it test fitted for first time couple days ago. Cheers.

IMG_20191109_110453.jpgIMG_20191109_111142.jpgIMG_20200603_082201.jpgIMG_20200603_082635.jpgIMG_20200603_151052.jpg


DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
I delidded my 8700k and it makes a huge difference, makes cooling it much easier in SFF cases. I dropped a full 20C.

Decided to go ahead and do the delid.

I couldn't find my Conductonaut so I ordered some more - and as soon as it shipped, I found my original stash.

I'm going to have to disassemble the system anyway - it turns out my Corsair SF750 is recalled and needs to be replaced.

So while I'm in there, I'm going to do the CPU and also put the full function front panel back in - my previous board didn't have a USB-C header and I didn't really use the audio jack or need the USB ports so I went with the power button only panel, but if I can make it fit, I think I'm going back.


https://www.anandtech.com/show/15829/corsair-sf-series-psu-recall



GB223

n00b
Joined
Jun 10, 2020
Messages
3
Just built my first ever pc and I am running into some issues so would appreciate any help/advise.

Ncase M1 v8
3950x
Asus strix x570i
2080 Super FE
G-Skill 32GB 3600MHz Trident Z Neo
Kraken x53 with stock fans as intake
Bottom 2 Noctua NF-F12 iPPC 2000 PWM as intake
Sabrent 1TB Rocket NVMe 4.0 Gen4 PCIe M.2
Sabrent 2TB Rocket NVMe PCIe M.2
Corsair SF750
Thermal Grizzly Kryonout therma paste.

1. CPU Temps, especially idle temps seem too high. I didn't do any OC or enabled PBO and Idle is bouncing between 50-70c. When running Cinebench R20 CPU reached ~80c and durring an hour of gaming it peaked to 88c. Cinebench score btw is ~9020 which is also quite low when comparing to similar rigs.
Vcore also seems high and is constantly shown in HWinfo, RM and Bios between 1.4v-1.5v. (Iv'e read that there is some false temps reported from the chipset and that CPU-Z reports the true voltage and indeed in CPU-z I see ~1.1v)
I think I got the wrong bottom fans and should've went with NF-A12x25. If you guys think those would show a significant improvement I don't mind getting them. Same goes for the stock NZXT Radiator fans.

Any help or advise to achieve lower temps and better performance would be great.

2. Blue LED in the case is not showing for some reason. It blinks red a couple of times when I boot my pc but doesnt have the constant blue it supposed to. Not a huge concern but would be nice if I can get this sorted too

3. Fans are noisy but atm I don't want to lower fan curves when system is running hot

I guess that's all for now. Would appreciate any help with these issues



Nobu

Supreme [H]ardness
Joined
Jun 7, 2007
Messages
6,525
Take the power led wire and flip the connector. LEDs only work one way, run them backwards and you either get nothing or burn'em up.


GB223

n00b
Joined
Jun 10, 2020
Messages
3
Take the power led wire and flip the connector. LEDs only work one way, run them backwards and you either get nothing or burn'em up.
The LED is working. It is blinking red on startup so I'm assuming the connector is set right?


Nobu

Supreme [H]ardness
Joined
Jun 7, 2007
Messages
6,525
The LED is working. It is blinking red on startup so I'm assuming the connector is set right?
There should be two LEDs, one for power and another for HDD activity. Unless you're talking about an rgb strip or LED fan?


TheBuzzer

HACK THE WORLD!
Joined
Aug 15, 2005
Messages
12,855
Trying to figure out what my build should be any ideas?
ItemNamePriceTotalLink
CPUAMD Ryzen 9 3950X 16-Core 3.5 GHz Socket AM4 105W 100-100000051WOF Desktop Processor
$699.99​
2234.95​
https://www.newegg.com/amd-ryzen-9-...9_3950X-_-19-113-616-_-Product&quicklink=true
MotherboardAsus ROG (X570) Crosshair VIII Impact, AMD, AM4, Ryzen 3000, (Mini-DTX) SFF Gaming Motherboard with PCIe 4.0, On-board Wifi 6 (802.11Ax), Intel LAN, SATA 6GB/s, USB 3.2 Gen 2, SO-DIMM.2 and Aura Sync
$499.99​
https://www.amazon.com/ROG-Crosshai...II+Impact&qid=1591885544&s=electronics&sr=1-1
RamG.SKILL Trident Z Neo (For AMD Ryzen) Series 32GB (2 x 16GB) 288-Pin RGB DDR4 SDRAM DDR4 3600 (PC4 28800) Desktop Memory Model F4-3600C16D-32GTZN
$249.99​
https://www.newegg.com/g-skill-32gb...x_16GB)-_-20-232-860-_-Product&quicklink=true
Power SupplySF Series™ SF600 — 600 Watt 80 PLUS® Platinum Certified High Performance SFX PSU
$144.99​
https://www.corsair.com/us/en/Categ...pply-Units-Advanced/SF-Series/p/CP-9020182-NA
CaseNcase M1 V6.1
$240.00​
https://ncases.com/products/m1
Hard Drive #1Corsair Force MP600 M.2 2280 2TB PCI-Express Gen 4.0 x4 NVMe 3D TLC Internal Solid State Drive (SSD) CSSD-F2000GBMP600
$399.99​
https://www.newegg.com/corsair-forc...m.2:_Corsair_MP600_2tb-_-20-236-549-_-Product


Bawjaws

Limp Gawd
Joined
Feb 20, 2017
Messages
453
The LED is working. It is blinking red on startup so I'm assuming the connector is set right?
As Nobu says, there are actually two LEDs in the power button. One is for power and the other for drive activity (incidentally, you can use either LED for either purpose), but the important thing is that LEDs have polarity so you have to connect the negative and postive pins to the correct wire or they won't work. Sounds like you have the drive activity LED wired up correctly but I'd wager that the power LED is connected up wrong, so if you flip the power LED connection then all should be well.


GB223

n00b
Joined
Jun 10, 2020
Messages
3
There should be two LEDs, one for power and another for HDD activity. Unless you're talking about an rgb strip or LED fan?
As Nobu says, there are actually two LEDs in the power button. One is for power and the other for drive activity (incidentally, you can use either LED for either purpose), but the important thing is that LEDs have polarity so you have to connect the negative and postive pins to the correct wire or they won't work. Sounds like you have the drive activity LED wired up correctly but I'd wager that the power LED is connected up wrong, so if you flip the power LED connection then all should be well.
ok thanks I'll see if that works


DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
The Swiftech Apogee Drive II (combo cpu block + DDC pump) seems to be sold out everywhere. I put an order in at FrozenCPU but it says 1-18 days before stock comes in.

Does anyone know if this is just Corona Virus in the supply chain or if maybe it's discontinued?

Joined
Nov 21, 2015
Messages
589
FYI there is a new 2-slot MicroATX board that will fit in the M1 -- the ASRock H410M-HDV. It's super basic, only $60! But will work with Intel 10-series CPUs. No VRM heatsinks, but in the M1 you'd have airflow over the VRMs so it won't be an issue. Honestly, this generation the non-K SKUs are significantly cheaper, so theoretically you could get that $60 board, pair it with a 10700, use the included stock cooler (improved this gen with a copper slug) and get pretty close to the same performance you'd get with a 10700K, Noctua cooler and a Z490I Strix for literally $350 less. Still, would be an imbalanced build, so I wouldn't recommend it, but definitely gets you thinking... Of course Ryzen still has the best price/performance.

It looks like it doesn't have an M.2 slot of any sort so... may be a little too basic. But it costs next to nothing so... it's nice to have options. There is a version with a PCIe M.2 slot for $5 more but it has 3 slots, so it won't fit in the M1.

Edit: Made some incorrect statements, see following posts.

Last edited:

Necere

2[H]4U
Joined
Jan 3, 2003
Messages
2,762
Edit: It looks like it doesn't have an M.2 slot of any sort so... may be a little too basic. But it costs next to nothing so... it's nice to have options. There is a version with a PCIe M.2 slot for $5 more but it has 3 slots, so it won't fit in the M1.
It's right at the limit at 226mm, but that board - the H410M-HDV/M.2 - will fit, as will the B460M-HDV.

Joined
Nov 21, 2015
Messages
589
It's right at the limit at 226mm, but that board - the H410M-HDV/M.2 - will fit, as will the B460M-HDV.

Oh right, I thought if there were 3 slots it wouldn't fit, but it's actually 4 slots that won't fit (or spacing for 4 slots rather). Interesting.

However, I amend my previous statement. Those ASRock H410 boards would significantly throttle a 10700. ASRock imposes a 135W long-duration power limit on it's H410 boards, so a 10700 would only boost to about 3.9GHz all-core. With certain MSI H410 and B460 boards, you would get a 255W long-duration limit, so you'd get the full 4.6GHz all-core out of the 10700. ASUS has a 210W limit on one B460 board, the rest are limited to 125W. It gets confusing, it's all detailed in this article:

https://wccftech.com/intel-comet-la...ock-msi-h470-b460-h410-motherboards-detailed/

Basically, if you're gonna go for a non-Z490 and non-K SKU, make sure your board supports a generous power limit, otherwise you won't get the advertised boost speeds. So those H410 boards would only be good up to about a 10400 or so. Still nice to have budget options.


Nobu

Supreme [H]ardness
Joined
Jun 7, 2007
Messages
6,525
Oh right, I thought if there were 3 slots it wouldn't fit, but it's actually 4 slots that won't fit (or spacing for 4 slots rather). Interesting.

However, I amend my previous statement. Those ASRock H410 boards would significantly throttle a 10700. ASRock imposes a 135W long-duration power limit on it's H410 boards, so a 10700 would only boost to about 3.9GHz all-core. With certain MSI H410 and B460 boards, you would get a 255W long-duration limit, so you'd get the full 4.6GHz all-core out of the 10700. ASUS has a 210W limit on one B460 board, the rest are limited to 125W. It gets confusing, it's all detailed in this article:

https://wccftech.com/intel-comet-la...ock-msi-h470-b460-h410-motherboards-detailed/

Basically, if you're gonna go for a non-Z490 and non-K SKU, make sure your board supports a generous power limit, otherwise you won't get the advertised boost speeds. So those H410 boards would only be good up to about a 10400 or so. Still nice to have budget options.
Some 3-slot boards will fit, but not all. You need to refer to the board dimensions. All ITX boards should fit, some flexATX and mATX boards will fit, no (Full) ATX boards will fit.


DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
I just got my SF 750 replaced from Corsair for my NCase, pretty fast shipping from DHL as the unit I got came from Amsterdam.

Did you get any kind of tracking info for the replacement? I opened my ticket 15 days ago and 4 days ago they said they were shipping one out but I have no way to know when it gets here.


Chimpee

[H]ard|Gawd
Joined
Jul 6, 2015
Messages
1,683
Did you get any kind of tracking info for the replacement? I opened my ticket 15 days ago and 4 days ago they said they were shipping one out but I have no way to know when it gets here.
I received tracking info from Corsair Support Team via email and text messages from DHL.


Engr62

Gawd
Joined
Mar 24, 2015
Messages
702
I have an unused set of black v6 panels here if anyone is interested in trading their silver panels. Found some silver panels.

Last edited:

DoubleTap

2[H]4U
Joined
Dec 16, 2010
Messages
2,806
Added a MORA 3 to my Ncase M1 a few weeks ago. My first round of tubing was pretty rough:


I didn't really like how the tubing was so sloppy, it pulled the grommets out of the case and tented to push on the internal fittings.

It took some doing - I had to get a 2 slot bracket for my GPU (instead of a 3 slot) from EVGA

Then I got this PCIE pass through for the bottom slot and redid the internal tubing to connect to the PCIE slot:

Looks much better:




Also fixed this sloppy rad to res return loop that was just a mess of fittings and whatnot:


I added in a flow indicator and managed to not use tubing:

(yeah, I messed up and didn't move that return tube in the res - I'll drain and fix it tomorrow...

All in all, this cooling system is extremely quiet and powerful - I couldn't be happier:


These are just the OC results from the Asus AI OC module - I'm betting I can get the voltage down a little.

Gaming performance increase is dramatic.

8700K (delid, TG LM) @5.2Ghz
G.Skill 16GB 4000Mhz
RTX 2080Ti @2.1Ghz

Temps are high 30s, dipping into the low 40s


smarenwolf

Weaksauce
Joined
May 7, 2018
Messages
112
Hey guys,
I'm planning a build in an NCASE M1 (old hardware, air-cooled, already exists; case and iceman pump/res are ordered), but to continue planning some details, I need two distances:
  1. bottom of case to one-slot GPU (aka, waterblocked GPU) to see what radiators fit with what fans and how much of an air-gap is left there.
  2. closed side-radiator mount to SFX-PSU to see what radiators fit with what fans and how much space for ATX24-PIN and tubing needs to be reserved.
I would appreciate some help here very, very much :)


caycep

Weaksauce
Joined
Jan 12, 2014
Messages
87
I'm a bit out of date here...built an X99, I think Haswell era M1 w/ a Noctua C14, and also a blower style GPU. Works well in general.

I might think of upgrading once the 3080 comes out...but if I want to air cool anything (stock, no OC) and not deal with water coolers/radiators, then it's best to find a blower style GPU model? Or does the C14 handle the dual/triple fan open-air style reasonably well?

Last edited:

AG1M

Weaksauce
Joined
Apr 7, 2017
Messages
83

Great build :) Love the Watercool Heatkiller blocks too, I will update my Ncase build soon too with that ALC PCI slot solution, currently I use this method with panel mount and cheap ALC QDCs but they are crappy so I will replace them:


I use the CPC NS6 series for quick disconnects, those CPC QDCs are huge, but high quality, no spill and have higher flowrate than the ALC QDCs:



klm

n00b
Joined
Jun 26, 2017
Messages
32
Will the fully perforated replacement side panels be available again, ever? I really want one for my V5, but I've never seen them available.


Grendell

n00b
Joined
Aug 20, 2015
Messages
35
he ho , lately i did rebuild my 2 ncase m1 cases with new parts , both of them have now a 2080ti and a gigabyte z490 itx with a 10900k , both work fine , for cooling the cpu i use a 240mm aio and the teps are realy good for gaming

latly the de shrouding of the gpu is realy popular so i tryed it on my gpu .......... the orginial fans arent that quit and ramp up to 3000rpm+ and also in low speed around 900rpm while idel they arent that quit , i personaly think the bearings hafe a problem

the gpu a nvidia 2080 ti , msi ventus oc , 2 noctua NF-A12x25 , adapter "GELID solutions PWM Fan Adaptor for vga Cooler Fan"
https://gelidsolutions.com/de/thermal-solutions/accessories-pwm-fan-adaptor/

this adaptor seems to work fine with the msi card , pwm works , while idle around 800/900rpm like the original fans , under load 2000rpm like the max fan speed of the noctua fans
for now the fans are pulling the hot air down the botom of the case , temps for now and with a quick test are around 73 degree C under load and 35 idle , room temp 24C

i think i will turn them around to push trough the fins because the fans are around 1cm away from the fins and i think with this it would be better to blow trough the fins , for now it works

i could remove some metal from the card to bring the fans a litle near the card for better temps but i like the option to install the stock fan again

removing the shroud is realy easy , 6 screws , 3 on each long side ,
the 2 fans are one unit with the shroud
after this the hight is exactly 2 slots more or less

dry fitting , its fits realy well with 2 120mm noctua below the card

added 2 mini 4pin to 4pin pwm adapters


with all this the card is quieter under load and idle , under load the 2000rpm are still better than the small 3000rpm+-

Joined
Oct 15, 2017
Messages
3
So with the 3080 just announced, the only info I can find on physical size is that the card'll be L:285mm by W:112mm which is 15mm extra length. Think it'll fit with the stock air (foundation) or once a waterblock is announced (assuming an EKWB is of similar size)?


Bijiont

n00b
Joined
May 17, 2016
Messages
45
So with the 3080 just announced, the only info I can find on physical size is that the card'll be L:285mm by W:112mm which is 15mm extra length. Think it'll fit with the stock air (foundation) or once a waterblock is announced (assuming an EKWB is of similar size)?

I can't recall the site as I have been bouncing around (will update once I find it again) however they stated both 3080 and 3070 foundation cards will fit in stock configuration.


oblongpolygon

Weaksauce
Joined
Sep 4, 2017
Messages
117
I believe there are several variations of the NCASE M1 that have been released.

I've got one in storage in Australia (bought a few years ago, just days before a huge change to my life / living arrangements sadly occurred, and so could never be used) and so I'm wondering: how will I determine which version of the case I've got?

Does it identify the version of the M1 on the box? The case itself is still in the box, sealed and everything.

Now that life is maybe returning to normal, I'm wondering if I could use it to house a three-slot card, or just sell it if not.

And what is the most recent version of the M1 released? Is it true to say that v6.1 is the most current?

Top
